HANDLE

Product Description

State of the art handle featuring the latest and best technology by using a double roller release mechanism.

The double roller mechanism allows a super smooth release with less trigger travel for an instant and more accurate shot. The mechanism has been load tested to an equivalent force of ten rubbers without failing.

The tough and thick silicone grip will last a lifetime, provides a great grip with or without dive gloves. Comes standard with a removable right thumb rest for right handed divers but it can easily be removing the screw to turn  it into a universal left and right grip if needed.

The line release is suitable for up to triple wrap of 2MM dyneema or 1.8MM monofilament.
All components are made from 316 stainless so you don’t have to worry about it rusting, although a generous fresh water rinse after each use is always highly recommended. The main handle body is made with 30% glass filled nylon making resistant to strong impacts and general wear and tear.

The spigot of the handle is 58MM long suitable for barrels with an Internal diameter of 26.5MM without shaving the six ridges or can be adapted for 26MM internal diameter barrels by shaving all ridges expect the bottom one. It comes with an O ring so unplugged barrels can be waterproofed. The front slot for the O ring is for 26.5MM barrels and the rear slot for 26MM. The handle can also be used for 25.5mm Internal diameter barrels, however some shims or tape may  be needed to be used around the spigot for a tight fit inside the  barrel.

The handle comes also ready to go for accommodating an ermes camera mount.

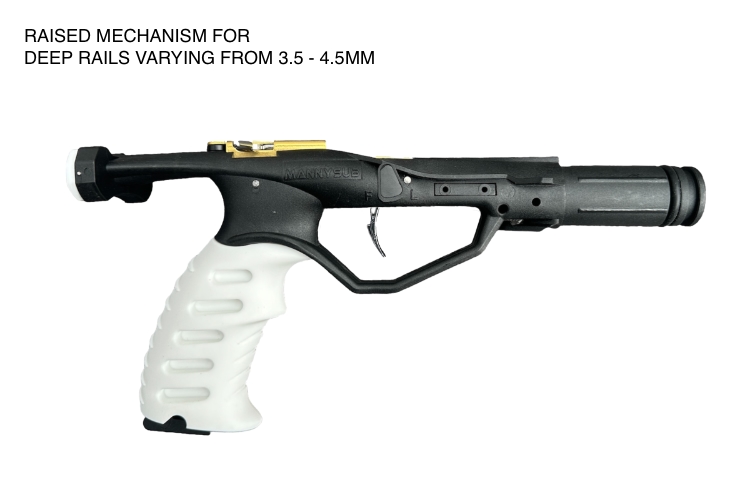

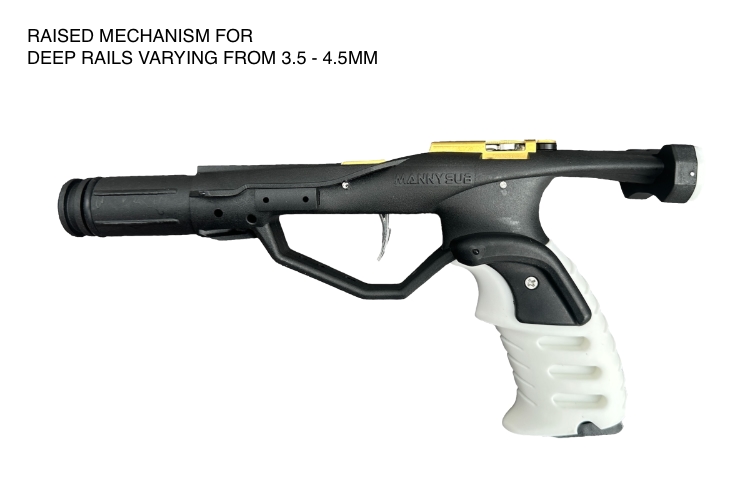

For retro fitting Mannysub barrels or similar with a rail depth varying from 3 – 4.5MM deep select the raised mechanism version. This version does not have a safety installed. With the raised mechanism version we recommend to shave/sand all ridges in the spigot except the bottom one at six o’clock position.

For the standard handle with the non raised mechanism we also recommend to shave/sand all ridges in the spigot except the bottom one at six o’clock position when mounted into a barrel with rail depth varying from 2.5 – 3MM deep. Any barrels with an rail offset of 2-2.4MM we recommend to shave/sand all ridges in the spigot except the top one at twelve o’clock position.
