INVERTED ROLLER POWER HEAD KIT CERAMIC

$299.00

From the leading and most experienced roller manufacturer we are very excited to add the INVERTED roller power head kit ceramic to our range. This kit offers all the latest and best hi tech components.

SKU: N/A Category:

Product Description

We are very excited to add the INVERTED roller power head kit ceramic to our range.

This kit offers all the latest high tech components to make the best roller inverted conversion kit in the market even better.

The Mannysub inverted muzzle has been proven over the years to offer incredible hitting power to bring XL pelagic down, from large dogtooth tuna to bluefin and yellow fin tuna to large bill fish.

If you are looking for the very best inverted roller kit to turn your gun into a very powerful blue water gun with smooth power and no recoil, we are confident this kit will satisfy you.

The dyneema is pre rigged on the muzzle to make the installation much easier.

Inverted roller kit features :

  1. Full ceramic bearings (4 in total / 2 per wheel) This  upgrade will make it easier to load, add  extra power, smoothness, and extra reliability. We are so confident in these bearings that we offer a LIFE TIME WARRANTY
  2. The soft dyneema rigging will be fitted to the muzzle based on the barrel length chosen and pre spliced with the wishbone and the loop loader. Simply make the sets of rubbers with the rubber supplied in the kit and connect them to the stainless D shackles and it’s all ready to go.
  3. This kit is available with two different rubbers options one for reef and the other for blue water.
  4.  Full carbon side brackets 2mm thick to protect rollers and bearings from impact.

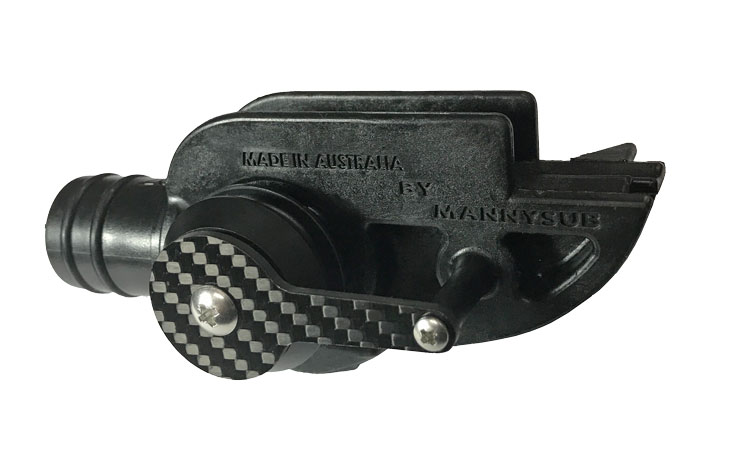

The new design brings several improvements: one-piece 40% glass-filled nylon design, light-weight carbon-fibre side plates, built-in anchor point for a bungee line with a 2.5 mm reel-line guide, along with an easy and fast loading system. These refinements make the Roller Power Head the most popular roller conversion kit available in the market today.

The new ceramic bearings are smooth and low-friction for maximum power transfer. Made from full ceramic, with encapsulated ceramic balls to stop sand and salt-water damage, these bearings are virtually maintenance free, just a rinse of fresh water and thats it ! These bearings come with a full life time warranty.

Any Euro/South African speargun with a cylindrical removable muzzle can be converted into a roller speargun with this system.

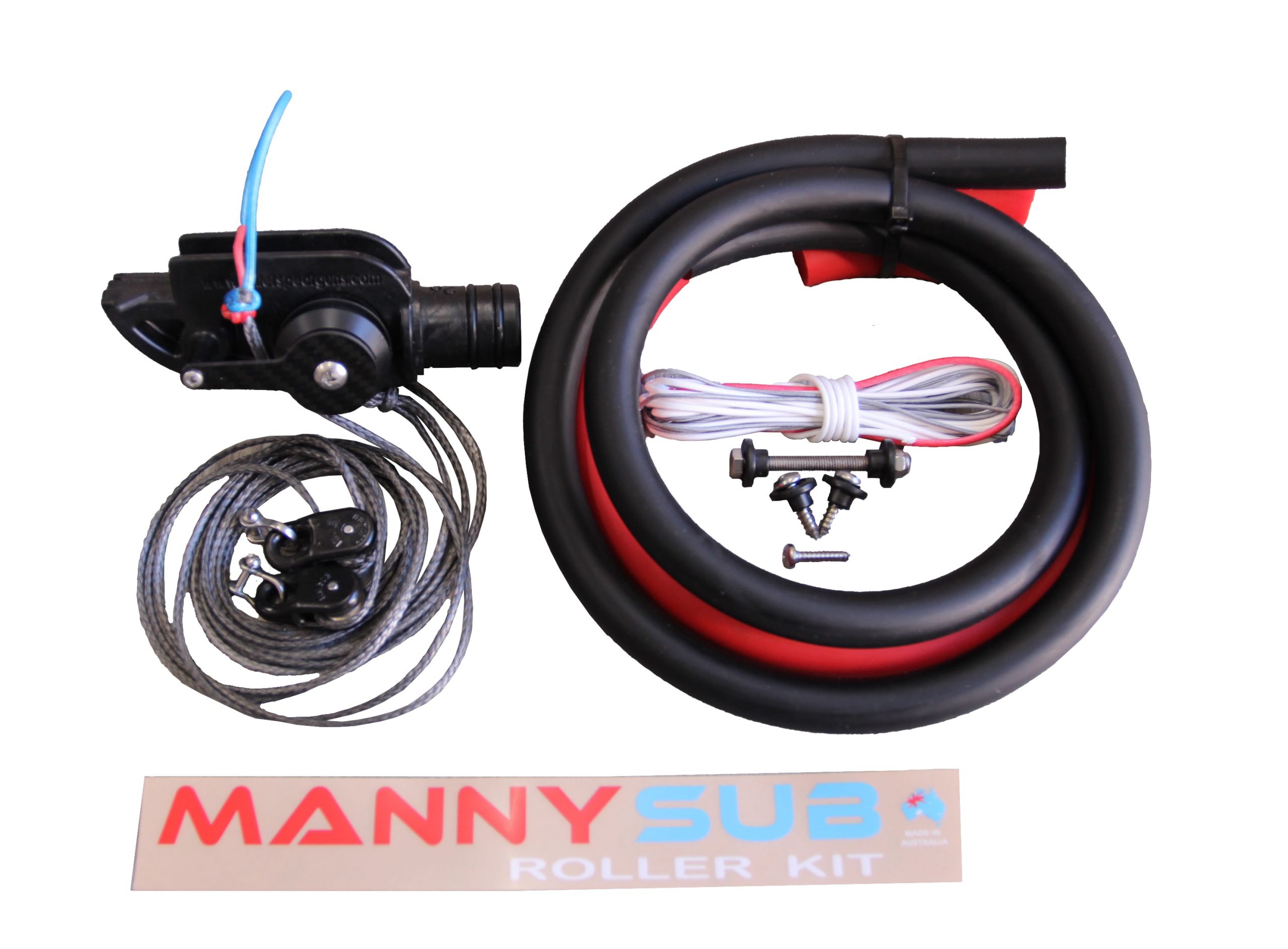

The INVERTED ROLLER CERAMIC Roller Power Head Kit includes:

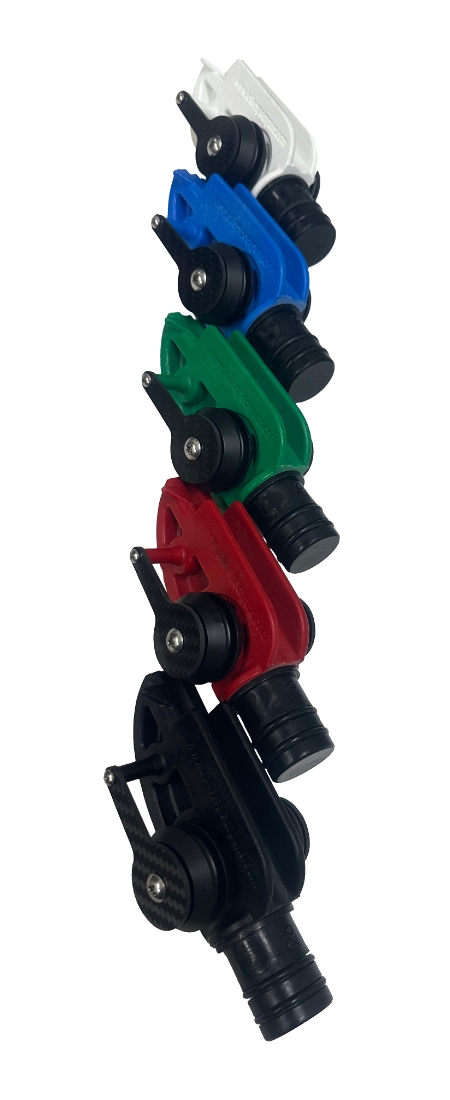

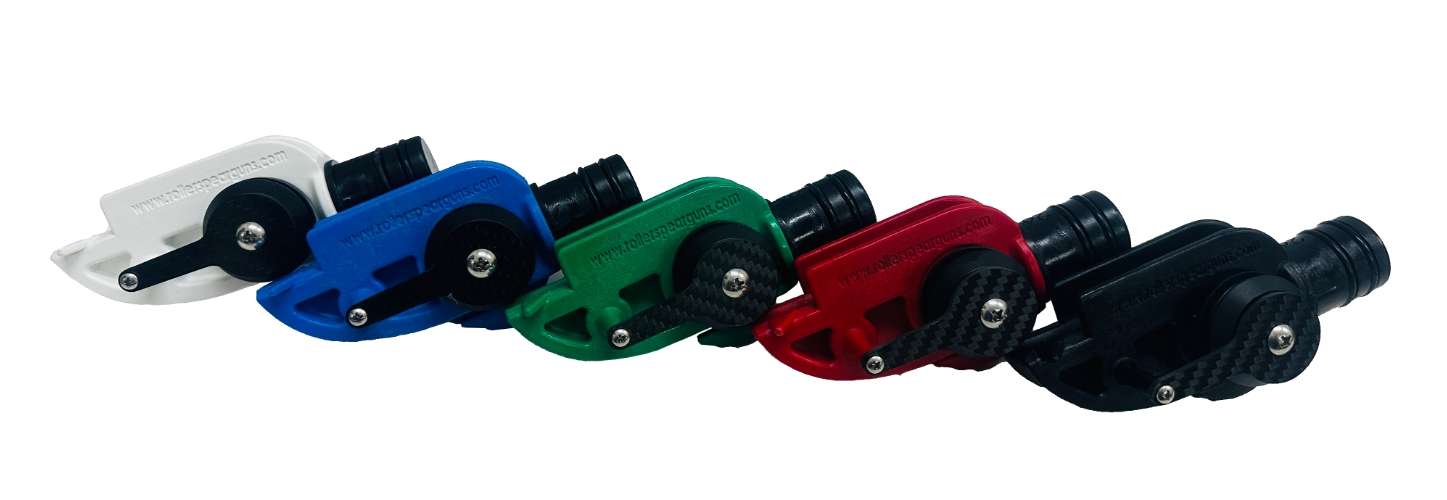

1 Roller muzzle available in 5 colours  – black, blue, red, white and green. Plus there is now the option of different coloured wheels: black, blue or red.

Two different diameter rubbers are available to choose from.

1 muzzle adaptor to fit the barrel.

2 different dyneema lines to complete the rigging (constrictor cord to tie the rubbers, 2MM dyneema for making the rubber inserts and wishbones) , 1 stainless fixing screw, 2 anchors for the 2 rubbers and one anchor  bolt for the primary rubber.

Rubber options:

 16+ 14MM best suited for large reef fish , medium size pelagics paired with a 7.5mm shaft (one length of 16mm reactive rubber supplied will be used as the primary rubber and this length will need to be cut into two equal pieces to make the one complete set. The other length of 14mm progressive rubber supplied will be for the secondary  rubber and this length will need to be cut into two equal pieces in order to make one complete rubber sets. We recommend  this kit to be used for reef species on spearguns ranging in size from 80 to 100 cm.

 18+ 16MM best suited for XL pelagics paired with an 8 or 8.5mm shaft (one length of 18mm reactive rubber supplied will be used as the primary rubber and this length will need to be cut into two equal pieces to make the one complete set. The other longer length of 16mm progressive rubber supplied will be for the secondary and third rubber and this length will need to be cut into four equal pieces in order to make two complete sets. For blue water setups we recommend installing it on spearguns ranging in size from 110 to 130 cm.

Additional information

LENGTH

, , , , , , , , , , , ,

MUZZLE COLOUR

BLACK, BLUE, GREEN, RED, WHITE

WHEELS COLOUR

BLACK, BLUE, RED

RUBBERS

,

ADAPTER

, , , , , ,
